Fox ESS Commissioning Guide

New to the Fox ESS setup process? This quick guide walks you through commissioning a Fox ESS system using the FoxCloud 2.0 app — from first-time setup, creating the plant, configuring Wi-Fi, and finishing with all required installer settings. Follow each step in order and use the final checklist to make sure everything is properly commissioned.

Step 1: Download the FoxCloud 2.0 App

Scan the QR code provided with the unit to download FoxCloud 2.0, then install the app.

Once installed, the FoxCloud2.0 icon will appear on your home screen.

Step 2: Initial App Configuration (First Download Only)

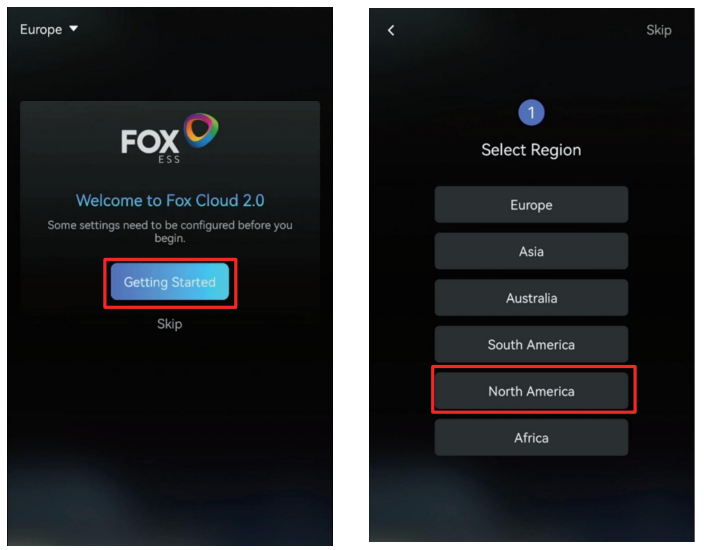

• Tap “Getting Started” and select North America.

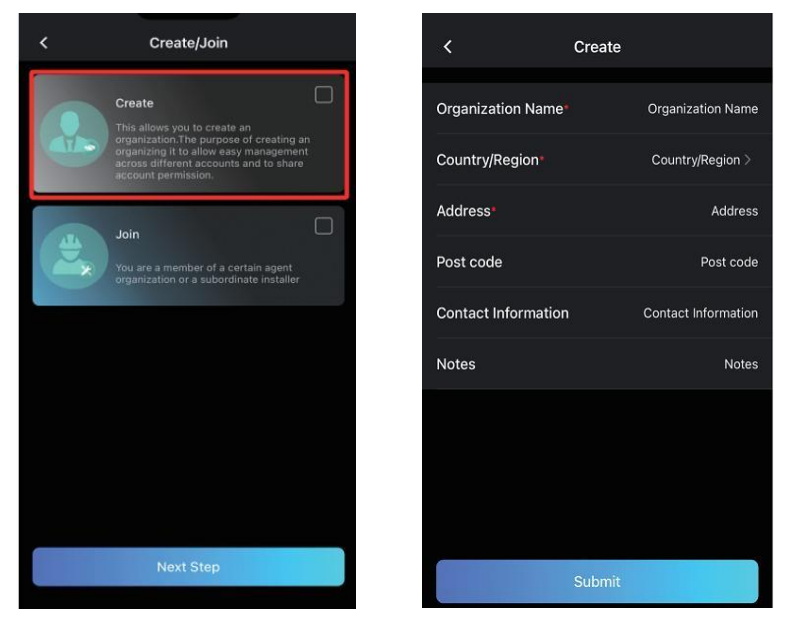

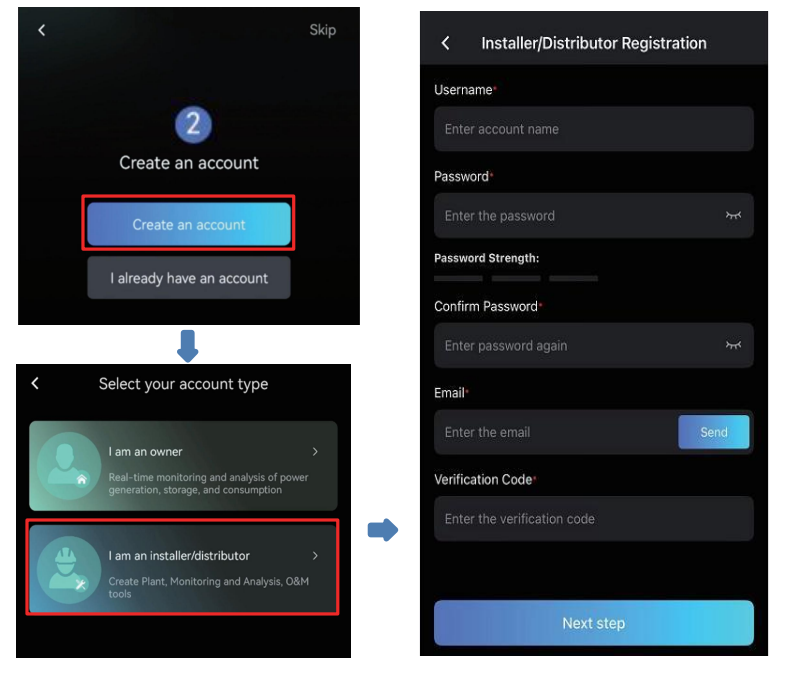

1. Create an account - installer/distributor account.

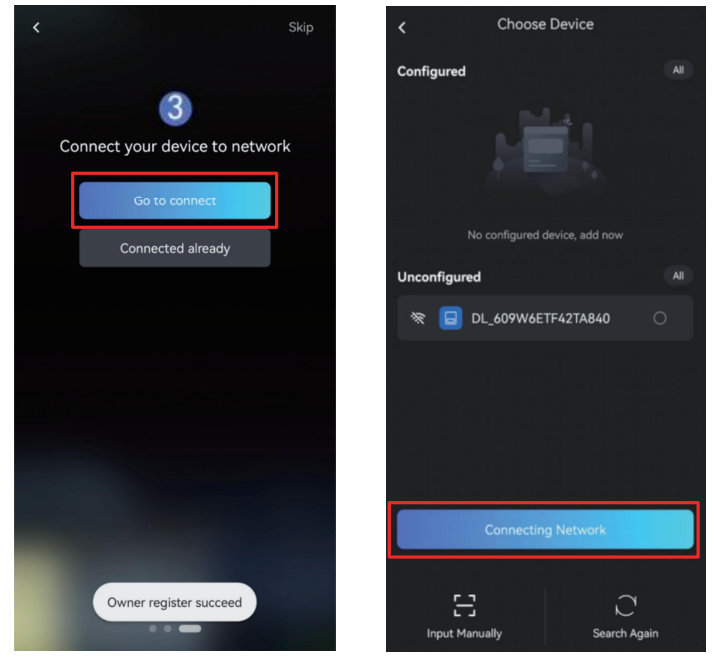

2. Connect to your network and make sure your phone’s Bluetooth is turned on.

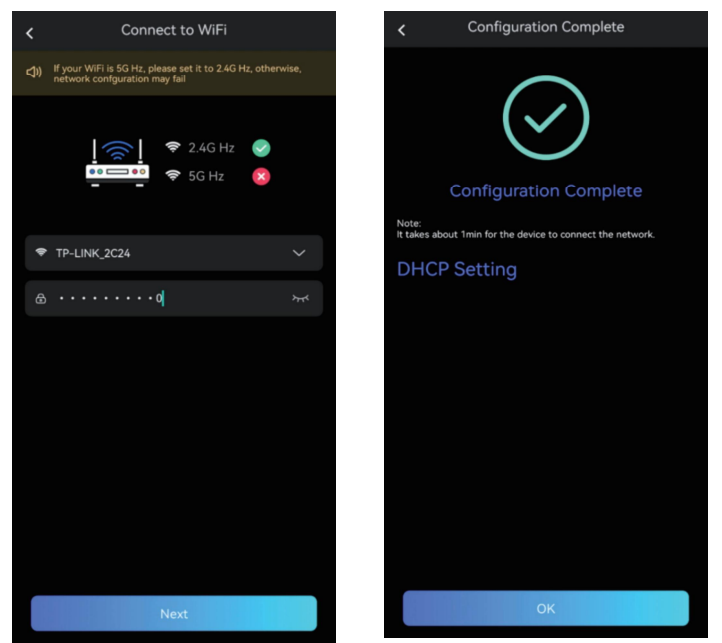

   Step 3: Open WLAN Configuration

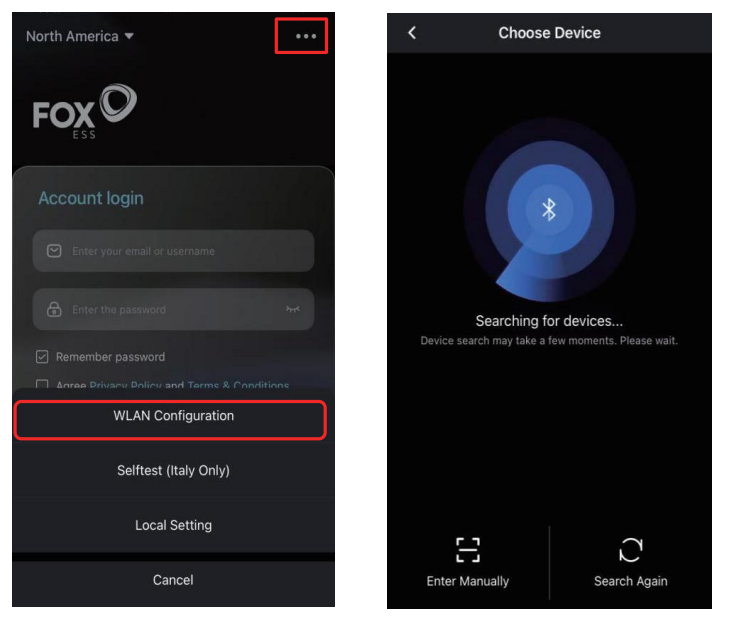

   Tap the “…” at the top-right, then select WLAN Configuration.

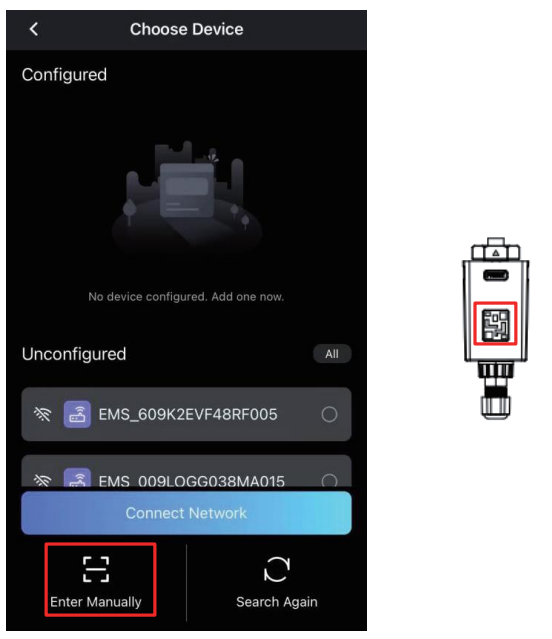

   You can also manually enter the Smart WILAN SN code.

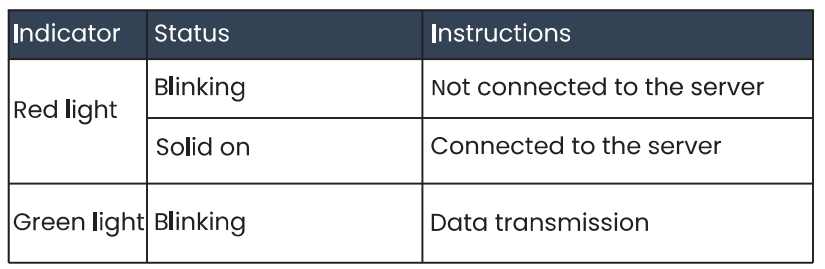

   LED indicator explanation:




   Step 4: Create the Plant

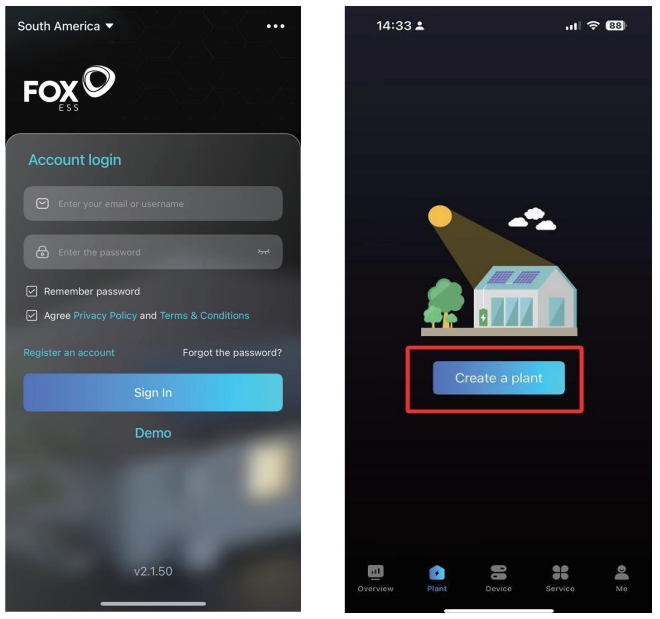

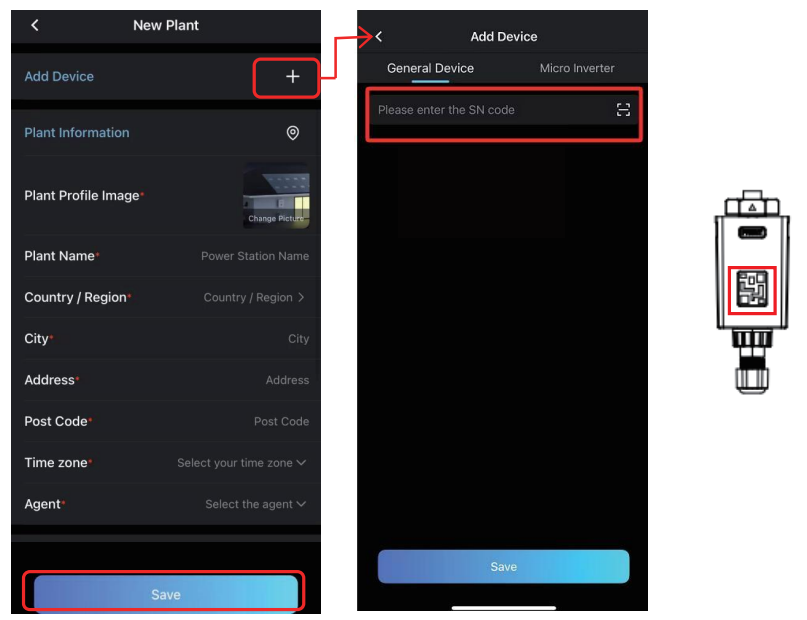

   Sign in to your account and tap Create a Plant.



   Scan the QR code on the Smart WILAN or manually enter the SN, then complete the plant information.




   Step 5: Check System Performance

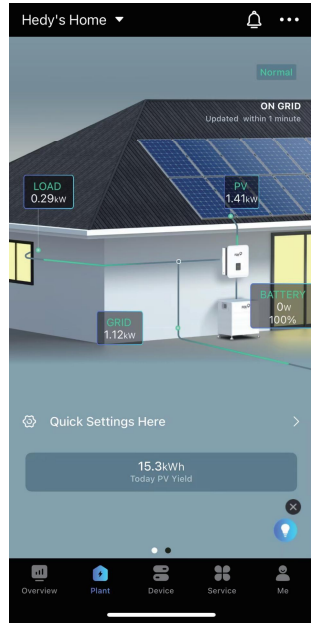

   Go to the Plant dashboard to confirm the system is online and reporting.




   Step 6: Complete the Commissioning Checklist

   Use this combined checklist to ensure all hardware, wiring, and software settings are correct

   Checklist	Complete
   Battery is wired to inverter (confirm polarity correct)
   Grid/Backup Output is wired correctly (L1/L2 lines line up throughout the system)
   RSD Jumper is present or E-Stop is wired
   CT Sensors are wired and facing the correct direction (arrow points towards the grid)
   Hub communication cable is wired correctly and has continuity
   Battery communication cable is wired to inverter Bat Comm Port (perform a pull test on the connector, the water right fitting sometimes pushes on the connector release tab)
   Resistors are present (confirm they are installed in the correct ports)
   Battery plug/Base is installed on the bottom battery
   Wi-Fi Dongle is installed (red light is on and green light is flashing)



   App & System Settings

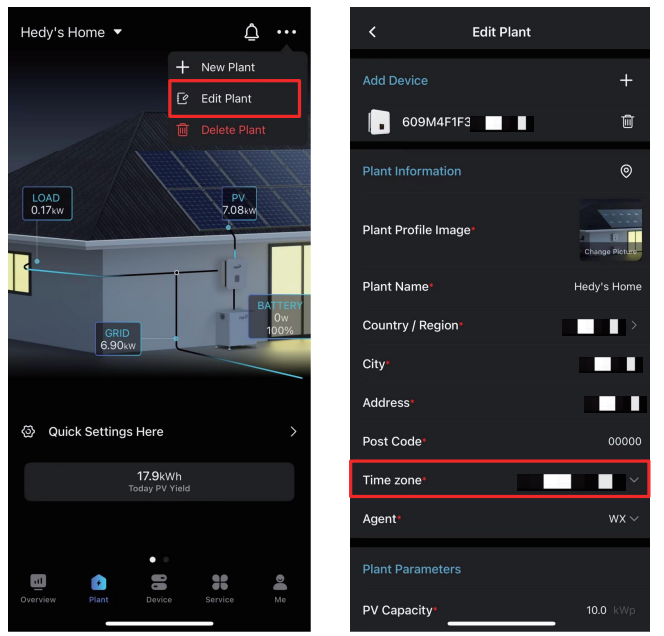

   Item 1: Set the time zone
   Done from the Plant dashboard.

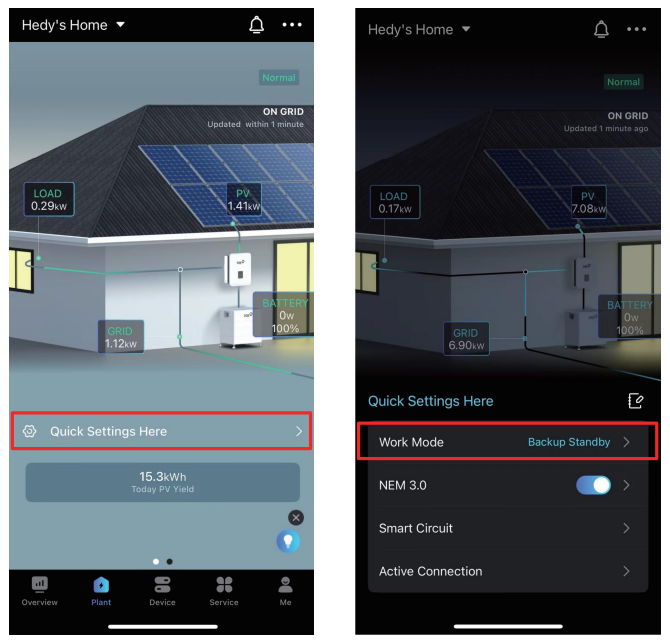

   Item 2: Configure the Energy Management Mode
   Choose the appropriate mode (Self-Use / Backup / Peak Shaving).

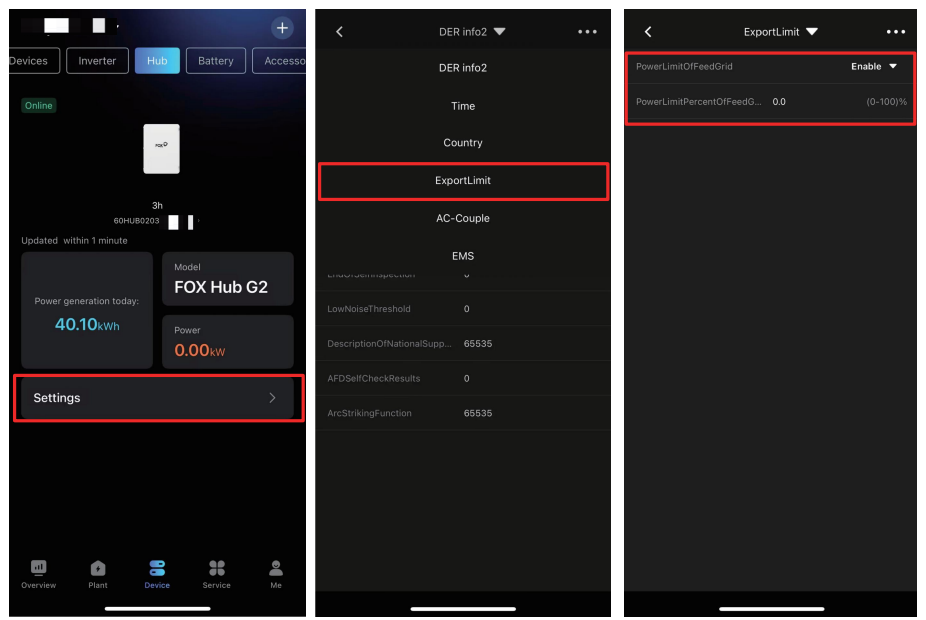

   Item 3: Enable Zero Backfeed (if required)

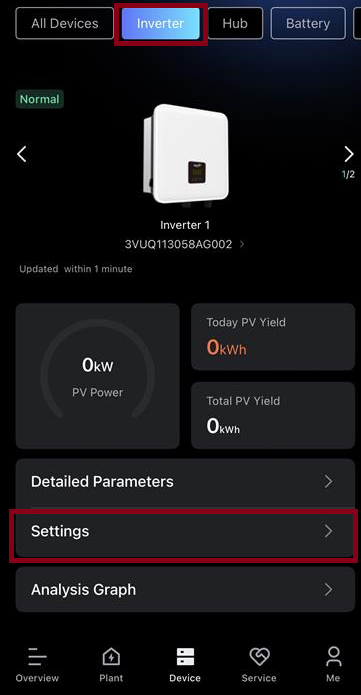

   Done from the Device dashboard.

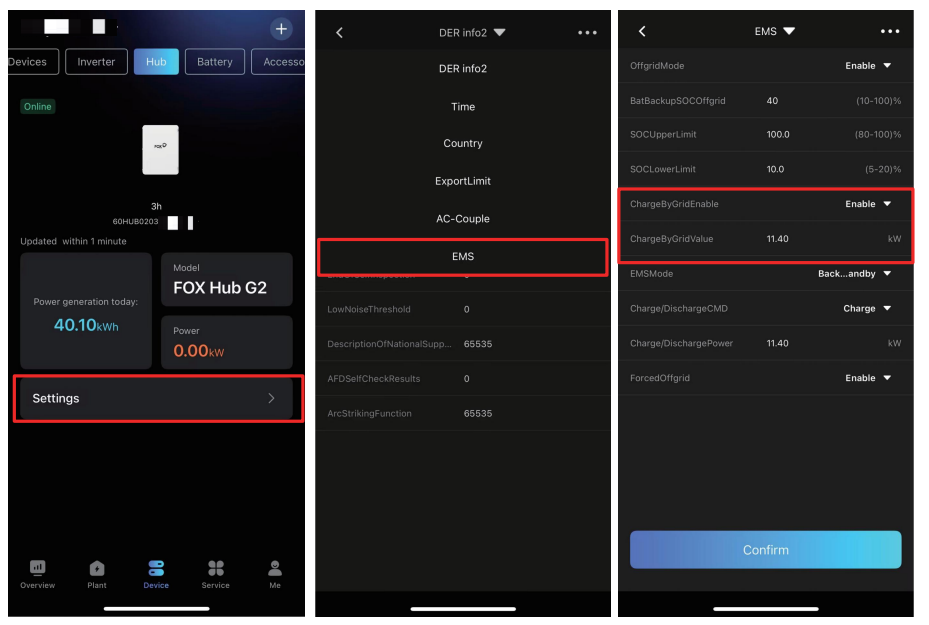

   Item 4: Set the Charge-by-Grid Value
   Set allowable charge limits and time-of-use charging rules.

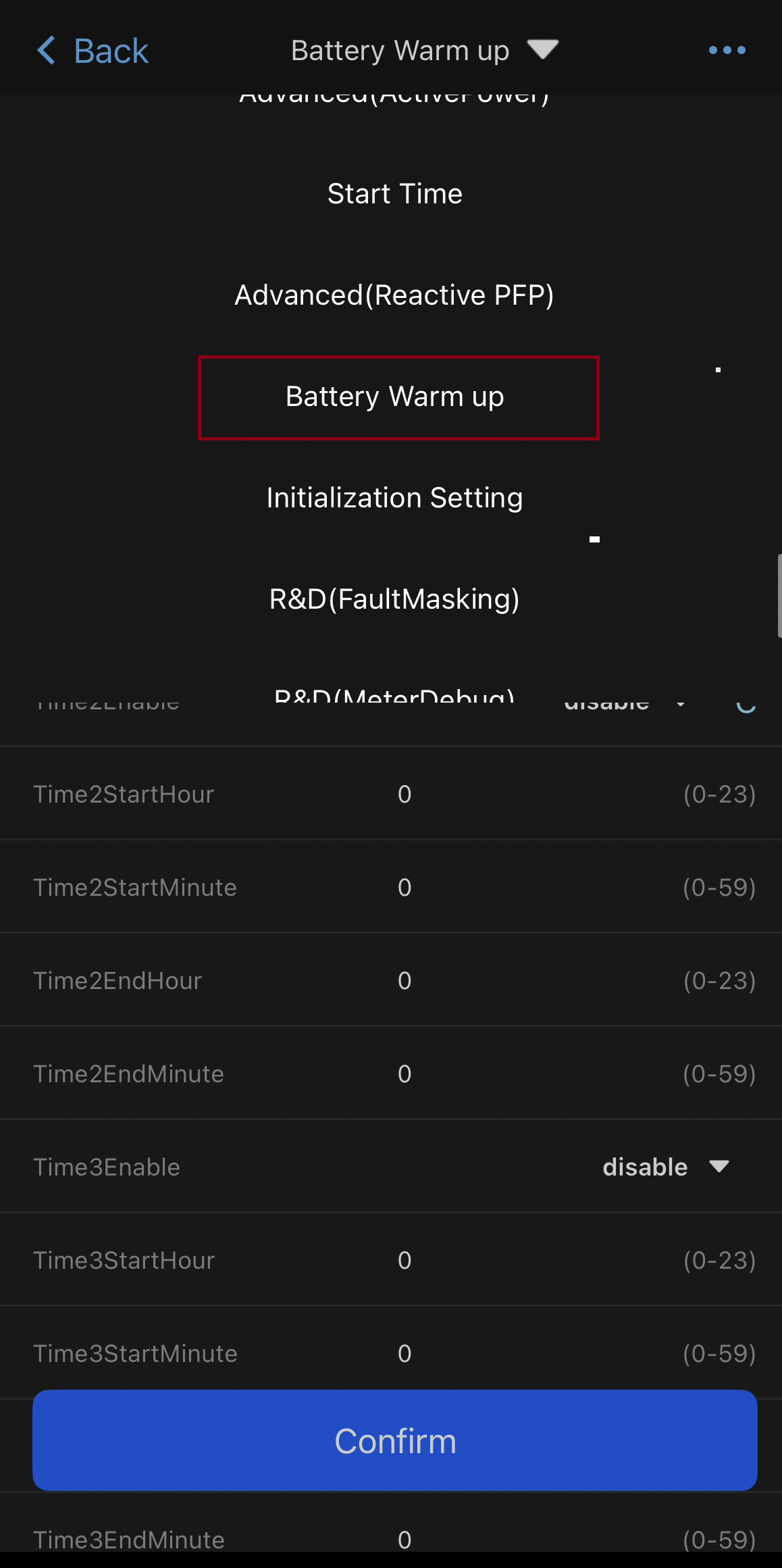

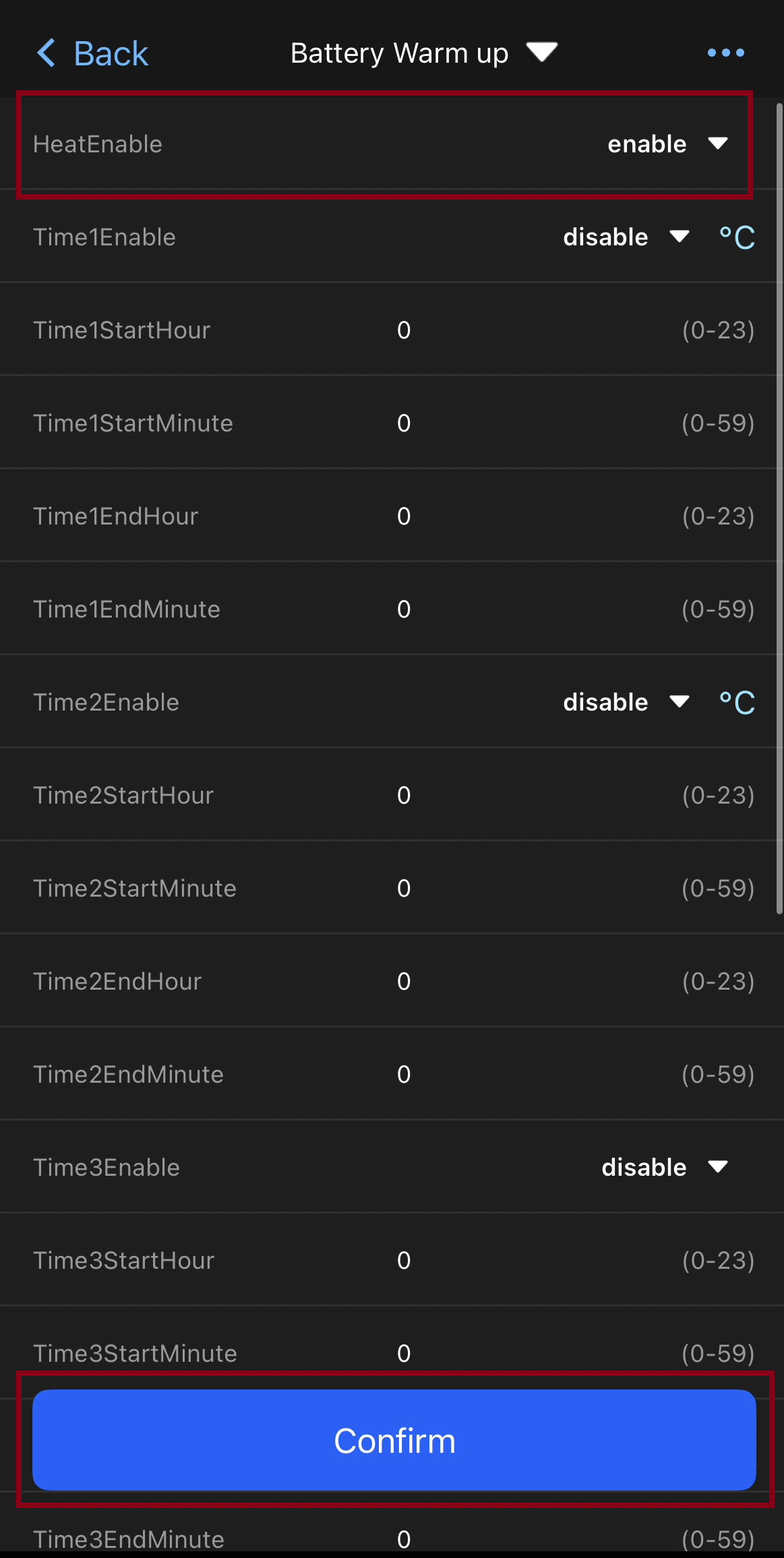

   Item 5: Enable battery heater
   Done from the Device dashboard.





   Step 7: Share the Plant

   Once the plant has been created, make sure the customer’s system is shared with the installer — including us.



   1. Go to the Plant dashboard

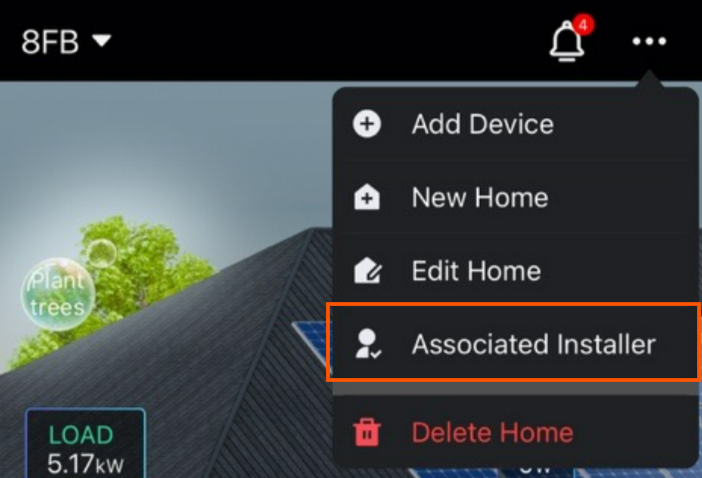

   2. Tap the “…” (three dots) in the top-right corner
   3. Select Associated Installer
   4. Enter SolarPowerStore as the installer account





   Links
   Quick Installation Guide



   ---
